Model: LFXS24663S
French 3-Door
Model: LFXS24663S

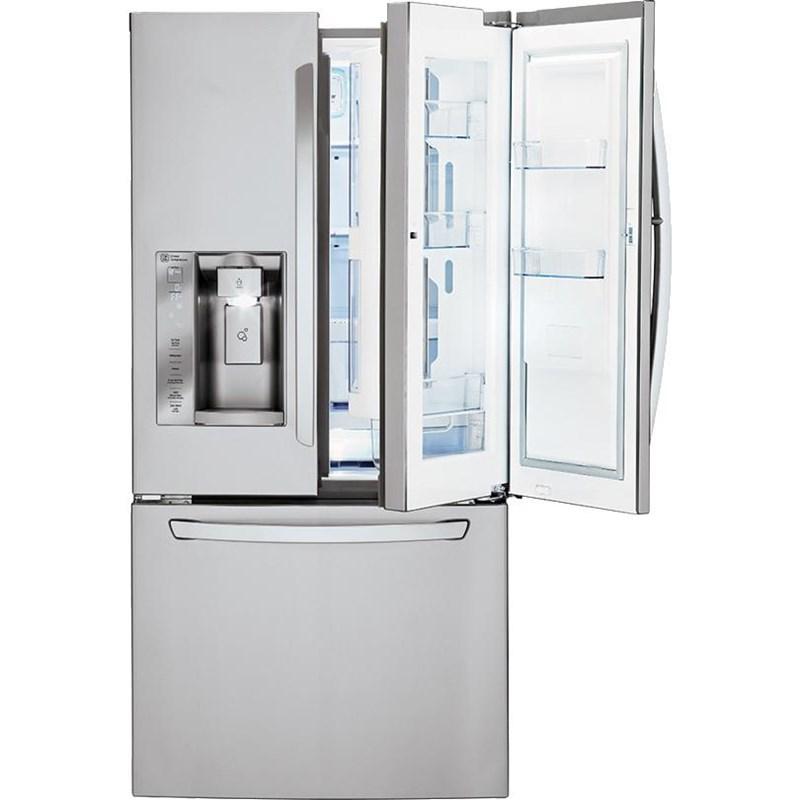

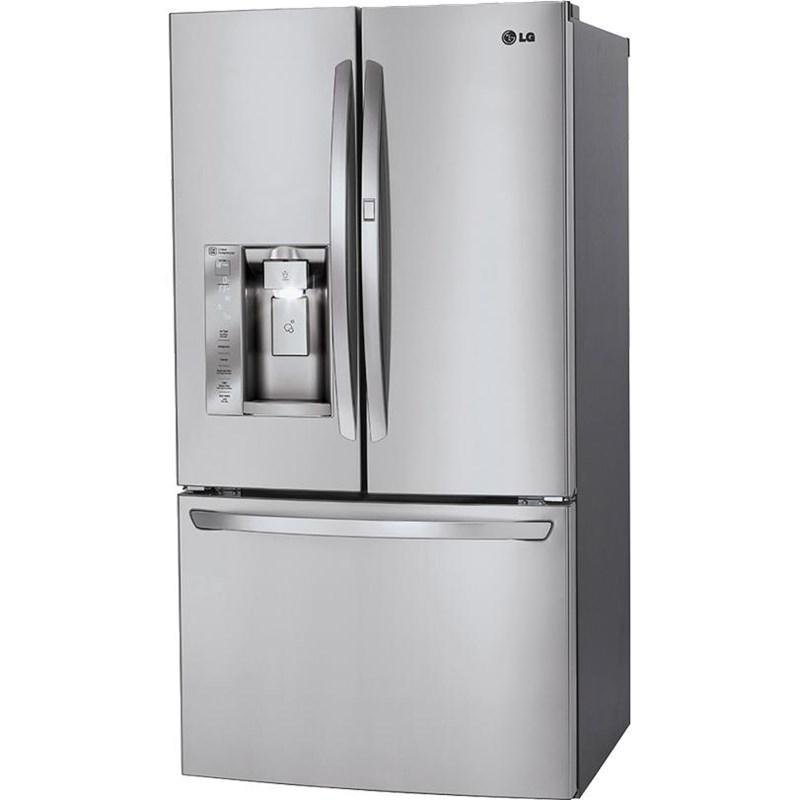

This LG 33-inch french door refrigerator is equipped with an external water and ice dispensing system. This model also features the Smart Cooling system, the Door-in-Door® design, SmartDiagnosis™ and two humidity crispers.
| GENERAL | |
| Refrigerator Type | French 3-Door |
| Installation Type | Freestanding |
| Counter-Depth | No |
| Door Hinge | Left and Right |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| CAPACITY | |
| Total | 24.0 cu. ft. / 0.68 cu. m. |
| Refrigerator | 16.0 cu. ft. / 0.45 cu. m. |
| Freezer | 8.0 cu. ft. / 0.23 cu. m. |
| REFRIGERATOR FEATURES | |
| Technologies | • SmarPull™ Handle • Spill-Protector™ Tempered Glass Shelves • DuraBase™ Solid Drawer Base • Glide N' Serve™ Drawer • Smart Cooling Plus System • IcePlus™ Accelerated Freezing Function • Multi-Air Flow Cooling • Door-in-Door™ Design • Slim SpacePlus™ Automatic Ice Maker • Premium Water Filtration System • SmartDiagnosis™ • LoDecibel™ Quiet Operation |
| Control Lock | Yes |
| Digital Display | Yes |
| Door Alarm | Yes |
| Electronic Sensors | Yes |
| Frost Free | Yes |
| Interior Light | Yes |
| Crisper Drawers | Yes |
| Deli Drawer/Meat | Yes |
| Gallon Door | Yes |
| Additional Information | • Premium LED Interior Light • 3 Fixed, Spill-Protector™ Tempered Glass Shelves and 1 Folding Shelf • Full Width, Temperature-Controlled Glide N' Serve™ Drawer • 2 Humidity Crispers / 1 Bonus Drawer • 6 Door Baskets (2 Adjustable Gallon Size) • DuraBase™ Solid Drawer Base • 9 Total (Including Door-in-Door) Bins |
| FREEZER FEATURES | |
| Additional Freezer Information | • Upper and Lower Drawer: Plastic • Divider • LED Lighting |
| ICE AND WATER | |
| Ice System | Exterior |
| Water System | Exterior |
| Filtration | Yes |
| Filtration Indicator | Yes |
| Dispenser Features | • Dispenser Type Integrated Tall Dispenser • Ice System SpacePlus™ Ice System • Daily Ice Production 3.0 lbs/3.2 IcePlus • Ice Storage Capacity 2.8 lbs • Water Filtration System Compact Filter LT700P. |
| ELECTRICAL INFORMATION | |
| Information | 513 (kWh/y) |
| CERTIFICATIONS AND APPROVALS | |
| Energy Star Certified | Yes |
| DIMENSIONS | |
| Class Width | 32" to 34.9" |
| Class Height | 65" - 70" |
| Width | 32.75 inch(es) / 83.18 cm |
| Height (With Hinge) | 69.87 inch(es) / 177.48 cm |
| Depth (Without Handles) | 32.87 inch(es) / 83.50 cm |
| Depth (With Handles) | 35.37 inch(es) / 89.85 cm |
| Weight | 326.99 lb(s) / 148.32 kg |
| Additional Dimensions | • Depth without Door: 29" • Depth (Total with Door Open): 46 1/8" • Height to Top of Case: 68 5/8" • Width (Door Open 90 Degrees with Handle): 41 1/8" • Width (Door Open 90 Degrees without Handle): 36 1/4" • Door Edge Clearance with Handle: 4 1/2" • Door Edge Clearance without Handle: 1 3/4" • Installation Clearance: Sides 1/8", Top 1", Back 1" |
| SHIPPING DIMENSIONS | |
| Width | 35 inch(es) / 88.9 cm |
| Height | 73 inch(es) / 185.42 cm |
| Depth | 38 inch(es) / 96.52 cm |
| Weight | 357.99 lb(s) / 162.38 kg |
| WARRANTY | |
| Warranty | • 1 Year Parts and Labor • 7 Years Parts on the Sealed System • 10 Years Parts on Linear Compressor |
| UPC | |
| UPC# | 048231786614 |
